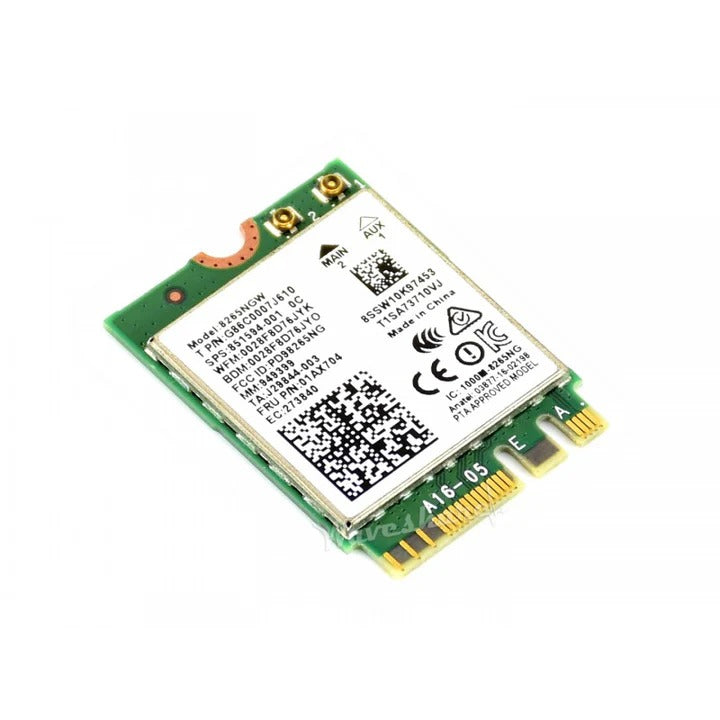

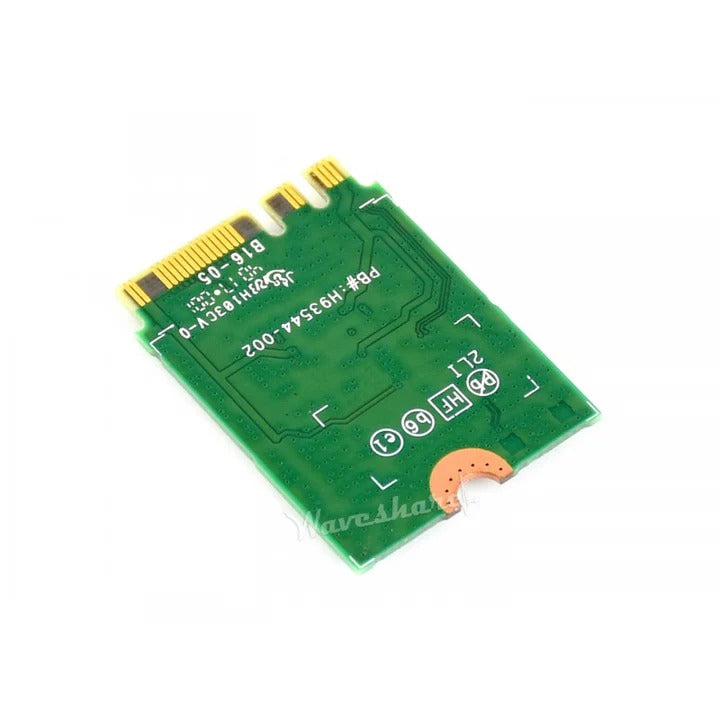

AC8265 Wireless NIC, Dual-Band Wi-Fi 5, Bluetooth 4.2, High Speed and Low Latency

AC8265 Wireless NIC, 2.4G / 5G WiFi, Bluetooth 4.2, Applicable For devices with M.2 Port

This is an AC8265 Wireless NIC for Jetson Nano Wi-Fi / Bluetooth. The module is used to receive signals through NIC.NIC allows both wired and wireless communications. NIC allows communications between computers connected via local area network (LAN) as well as communications over the large-scale network through Internet Protocol (IP). This module contains two antennas that are used to attract the signals.

Adopts 8265AC Core

 Supports IEEE 802.11 a/b/g/n/ac

Product Features

Chip: Intel 8265AC

Bands: 2.4GHz / 5GHz

Speed: 300Mbps / 867Mbps

WiFi protocol: 802.11ac

Bluetooth version: 4.2

NIC interface: NGFF (M.2)

Antenna interface: IPEX connector

Supported OS: Linux, Windows 10/8.1/8/7

Dimensions: 22mm × 30mm × 2.4mm

How to Use

Interface Introduction

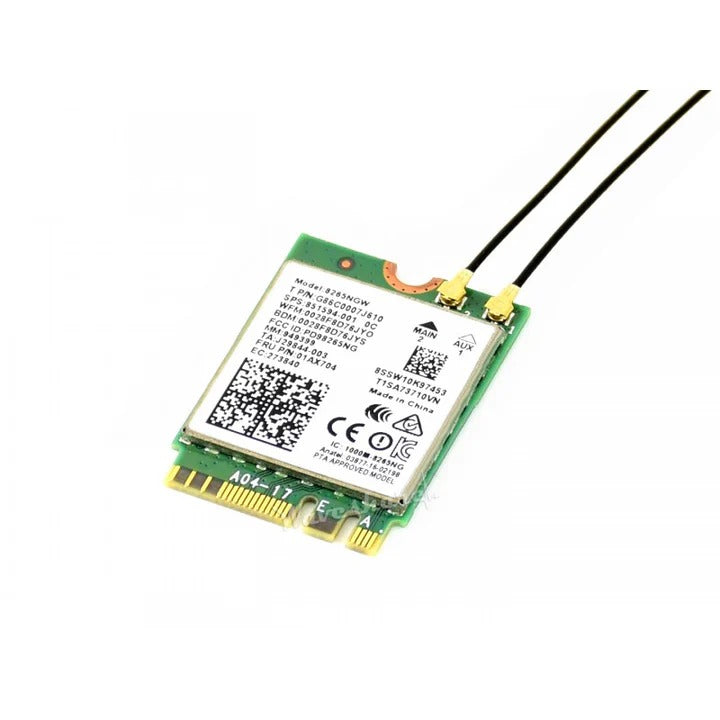

Access to antenna via IPEX connector

Outline dimensions

Package Includes

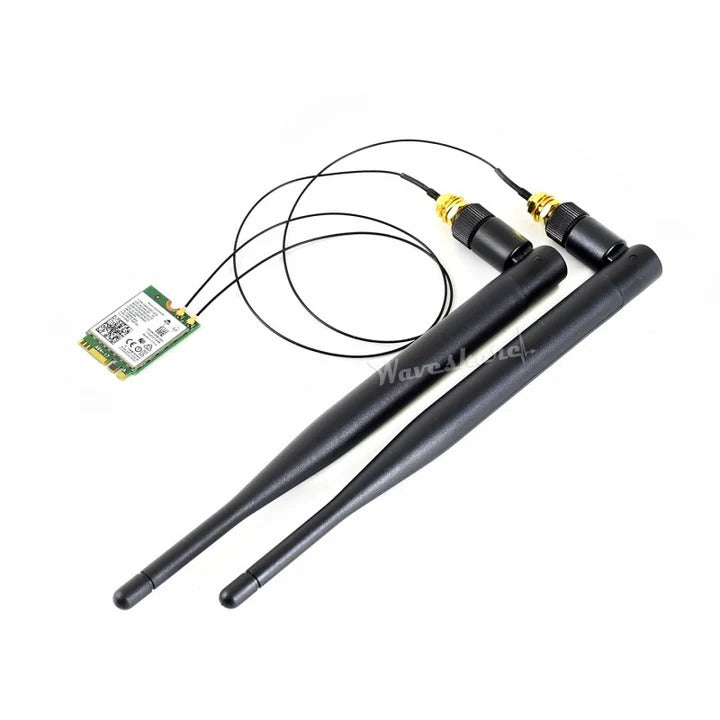

1 x AC8265 Wireless NIC for Jetson Nano Wi-Fi / Bluetooth

2 x Connecting Antennas: 190 x 13 (L x D) mm
