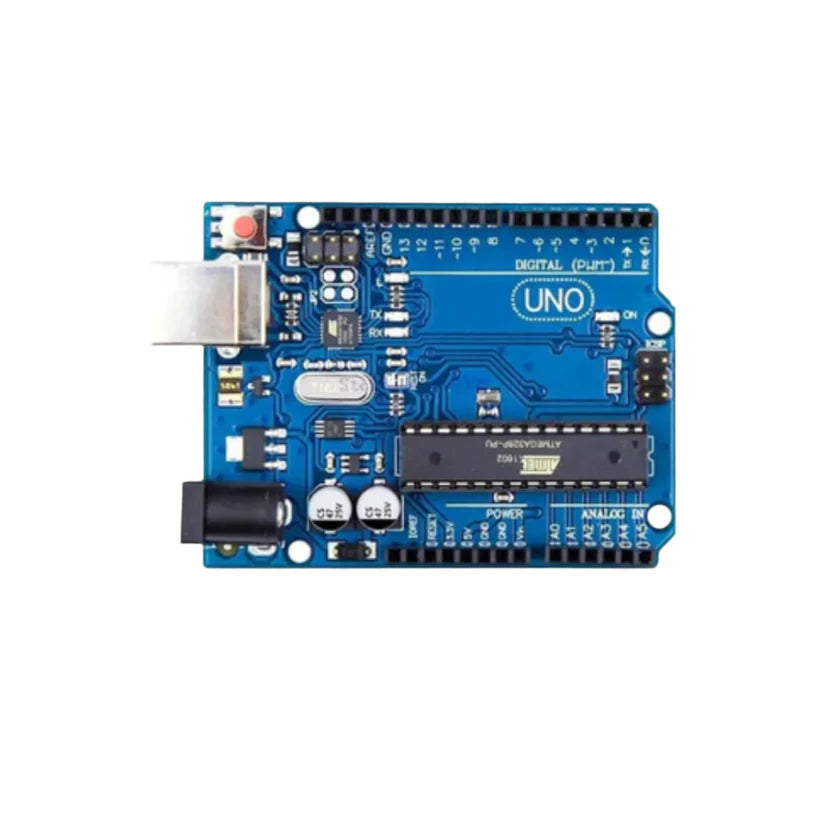

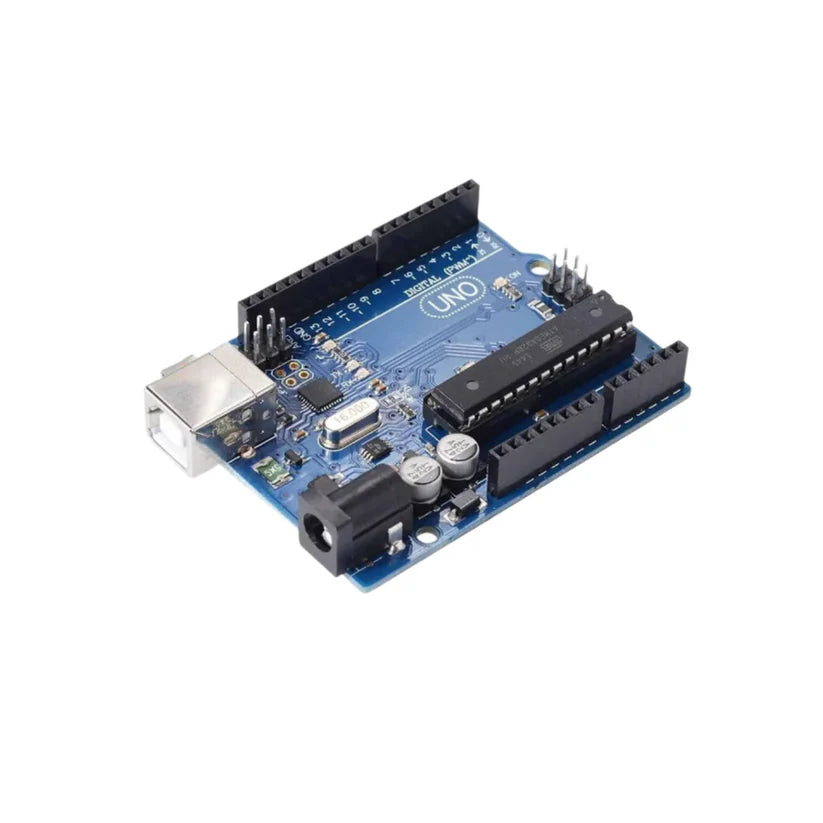

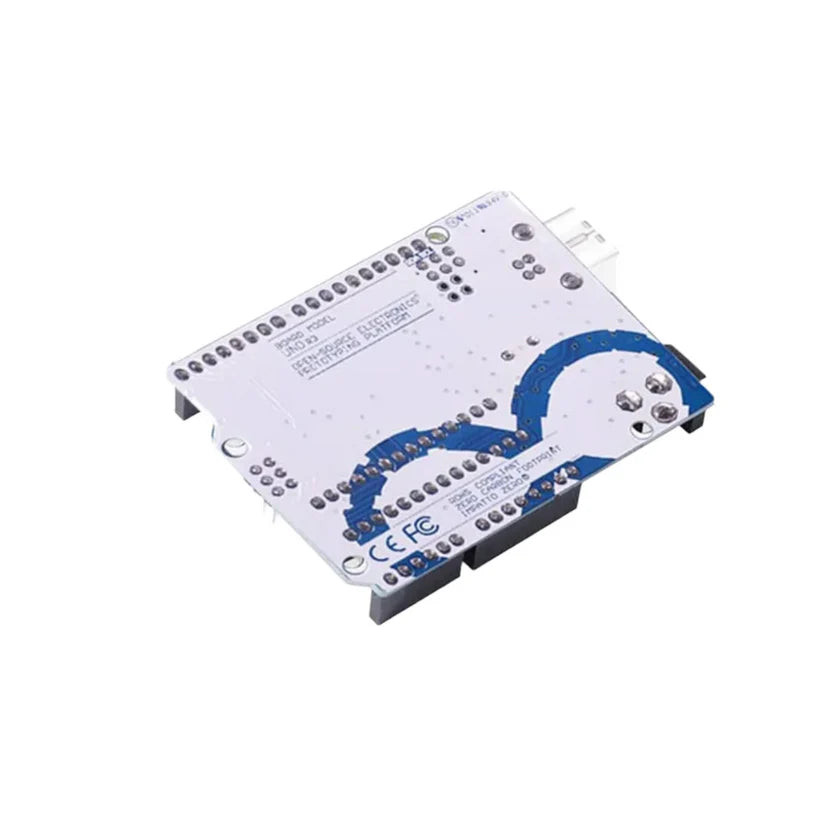

Arduino Uno R3 DIP Clone Board – ATmega328P Removable Chip, CH340 USB | 16MHz, 32KB Flash, Full Shield & IDE Compatibility
The Arduino Uno R3 DIP Clone is a cost-effective, fully compatible development board built around the ATmega328P microcontroller in a removable DIP socket — making it easy to swap or reprogram the chip independently of the board. It matches the original Arduino Uno R3 pin layout exactly, ensuring 100% compatibility with all Arduino shields, libraries, and sketches. Runs at 16MHz with 32KB flash, 2KB SRAM, 1KB EEPROM, 14 digital I/O pins (6 PWM), and 6 analog inputs, powered via USB Type-B or 7–12V DC barrel jack. The ideal starting board for students, hobbyists, and makers learning embedded systems, AVR programming, and IoT prototyping.
- ATmega328P DIP socket – removable and replaceable chip, swap it without desoldering anything
- Full Arduino Uno R3 compatibility – every shield, library, and sketch works without modification
- CH340 / ATmega16U2 USB-to-serial – plug-and-play programming via USB Type-B cable
- 14 digital I/O pins, 6 PWM – drive motors, servos, LEDs, relays, and displays
- 6 analog inputs (10-bit ADC) – read sensors, potentiometers, and analog signals
- 16MHz crystal oscillator – stable, accurate timing for time-sensitive applications
- Dual power input – USB (5V) or DC barrel jack (7–12V) with onboard 5V regulator
- Onboard indicators – power LED, L (pin 13), TX, RX, and reset button
Ideal Applications
- DIY electronics prototyping and maker projects
- Robotics and autonomous vehicle control
- IoT sensors, smart home, and automation systems
- Embedded systems and AVR programming education
- Sensor interfacing and data logging
- Entry-level circuit design and STEM learning kits
Technical Specifications
| Feature | Specification |
| Microcontroller | ATmega328P (DIP, removable) |
| USB Interface | CH340 / ATmega16U2 (varies by unit) |
| Clock Speed | 16 MHz |
| Flash Memory | 32KB |
| SRAM | 2KB |
| EEPROM | 1KB |
| Operating Voltage | 5V DC |
| Input Voltage | 7–12V (DC barrel jack) |
| Digital I/O Pins | 14 (6 with PWM output) |
| Analog Input Pins | 6 |
| DC Current per I/O Pin | 40mA |
| Power Options | USB Type-B or DC barrel jack (7–12V) |
| PCB Dimensions | 68.6 × 53.4mm |
| Weight | ~25g |
What's in the Box
- Arduino Uno R3 DIP Clone Board (ATmega328P) × 1
Note: This is a third-party clone board, not an official Arduino product. Fully compatible with the Arduino IDE and Uno R3 ecosystem. USB cable and power supply are not included. USB interface chip (CH340 or ATmega16U2) may vary between units.
