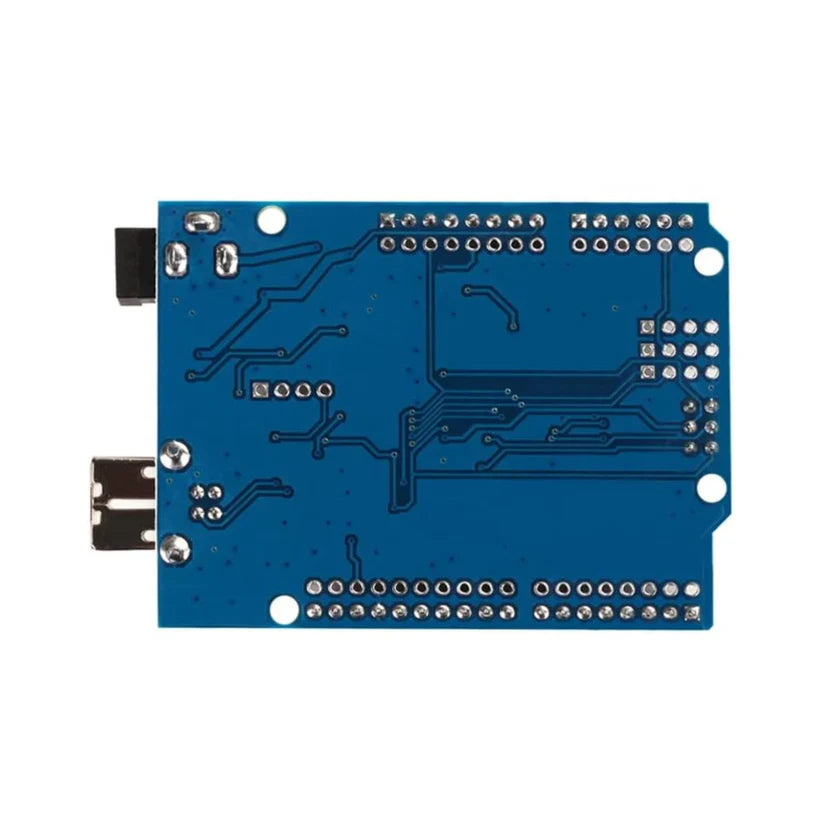

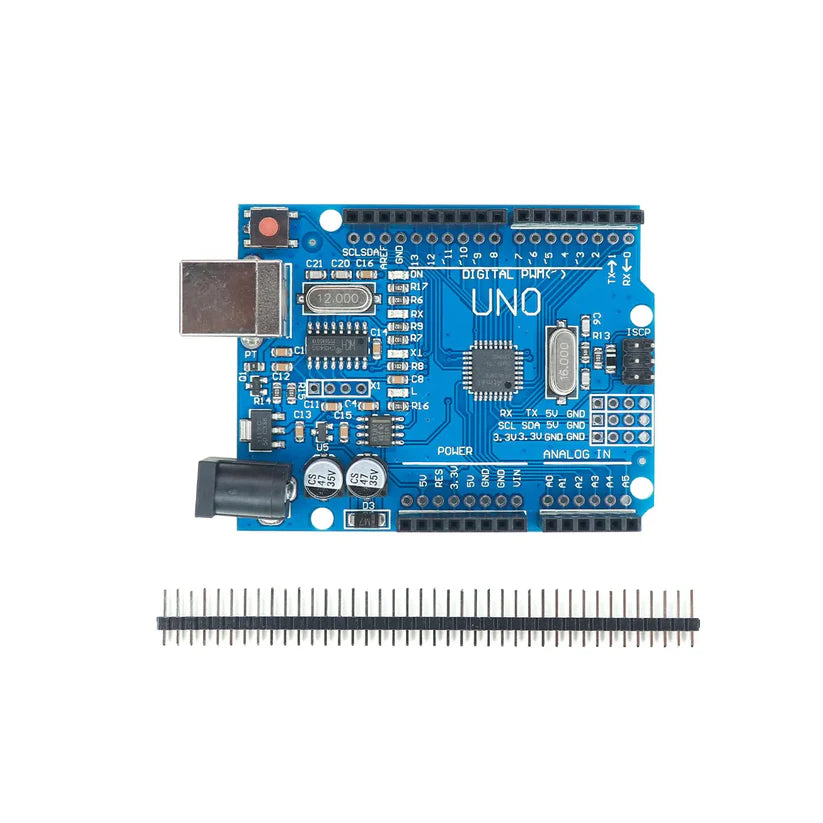

Arduino Uno R3 SMD (Clone)
Arduino Uno R3 SMD – ATmega328P Surface-Mount, CH340G USB | Full Shield & Library Compatibility, 16MHz, 32KB Flash The Arduino Uno R3 SMD is the surface-mount edition of the world's...
Read MoreSKU:ARD-017
- Regular price
- Rs. 436.00
- Sale price
- Rs. 436.00
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Arduino Uno R3 SMD – ATmega328P Surface-Mount, CH340G USB | Full Shield & Library Compatibility, 16MHz, 32KB Flash
The Arduino Uno R3 SMD is the surface-mount edition of the world's most popular microcontroller board, featuring the ATmega328P soldered directly to the PCB (SMD) rather than in a removable DIP socket, paired with a CH340G USB-to-serial interface. It retains 100% compatibility with the Arduino ecosystem — every shield, library, and sketch that works on the standard Uno R3 works here — while delivering a more compact, vibration-resistant build suited for permanent installations. Runs at 16MHz with 32KB flash, 2KB SRAM, 1KB EEPROM, 14 digital I/O pins (6 PWM), and 6 analog inputs on a 68.6 × 53.4mm board powered via USB or 7–12V DC jack.
- ATmega328P SMD – controller soldered directly for improved vibration resistance and a cleaner board profile
- CH340G USB interface – plug-and-play USB programming on Linux, Windows, and macOS
- Full Arduino Uno R3 compatibility – every shield, library, and sketch works without modification
- 14 digital I/O pins, 6 PWM – drive motors, servos, LEDs, relays, and more
- 6 analog inputs – 10-bit ADC for sensors, potentiometers, and analog signal reading
- 32KB flash / 2KB SRAM / 1KB EEPROM – ample memory for complex sketches and data logging
- Dual power input – USB (5V) or DC barrel jack (7–12V) with onboard regulation
- -40°C to 90°C operating range – suitable for both indoor and outdoor embedded deployments
Ideal Applications
- Prototyping microcontroller projects with the full Arduino shield ecosystem
- Educational coding, electronics labs, and STEM curricula
- Sensor integration, data logging, and control systems
- Robotics, autonomous vehicles, and embedded motor control
- IoT experimentation and home automation prototypes
- Permanent installations where a soldered MCU improves reliability over DIP
Technical Specifications
| Feature | Specification |
| Microcontroller | ATmega328P (SMD) |
| USB Interface | CH340G |
| Clock Speed | 16 MHz |
| Flash Memory | 32KB |
| SRAM | 2KB |
| EEPROM | 1KB |
| Operating Voltage | 5V DC |
| Input Voltage | 7–12V (recommended), 6–20V (limit) |
| Digital I/O Pins | 14 (6 with PWM output) |
| Analog Input Pins | 6 |
| DC Current per I/O Pin | 40mA |
| DC Current (3.3V Pin) | 50mA |
| Connectivity | USB Type-B, DC barrel jack, ICSP header, reset button |
| Onboard LEDs | Power (ON/OFF), L (pin 13), TX, RX |
| Operating Temperature | -40°C to 90°C |
| PCB Dimensions | 68.6 × 53.4mm |
| Weight | ~25g |
What's in the Box
- Arduino Uno R3 SMD Board × 1
Note: Unlike the standard DIP version, the SMD microcontroller is soldered directly to the board and cannot be removed or replaced. Functionally identical to the DIP Uno R3 in terms of pins, features, and shield compatibility. USB cable and power supply not included.
