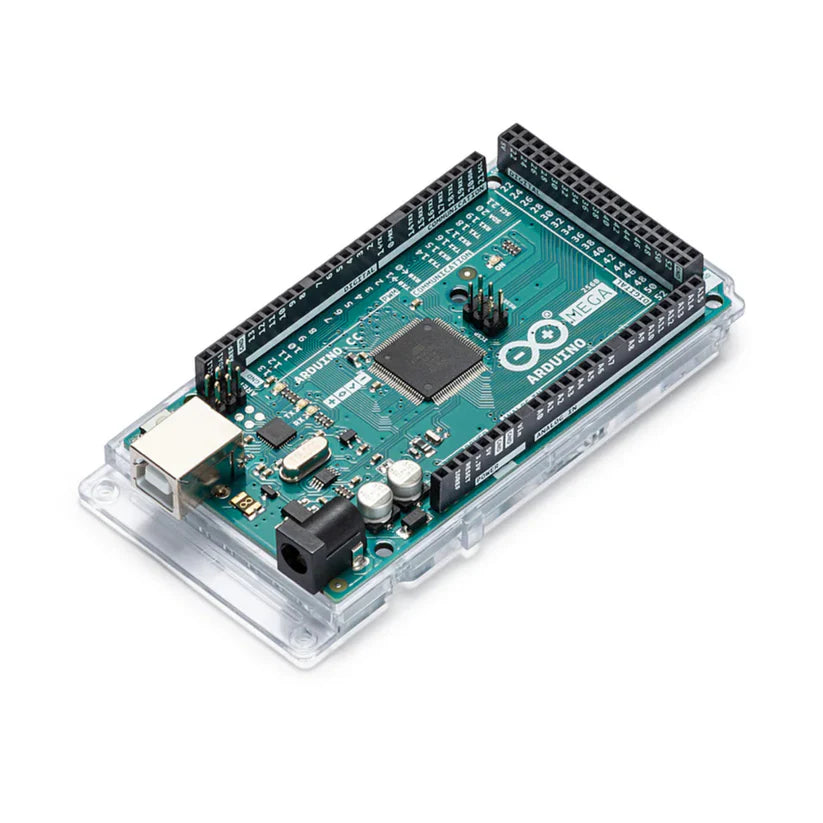

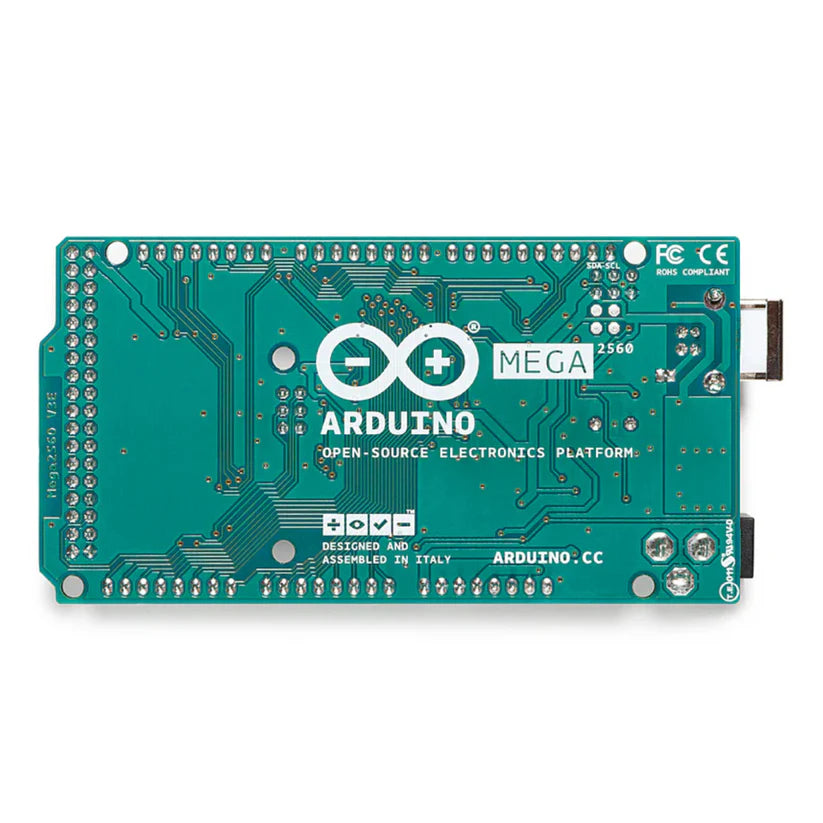

Arduino Mega 2560 Rev3 — ATmega2560 — 54 Digital I/O Pins — 256KB Flash Memory
The Arduino Mega 2560 Rev3 (A000067) is Arduino's most capable 8-bit development board, delivering 54 digital I/O pins, four independent hardware UARTs, and 256KB of Flash — eight times more memory than the Uno. Whether you're driving a 3D printer, orchestrating a multi-axis robot, or building a complex sensor hub, the Mega 2560 gives you the I/O headroom and memory depth to take on projects that would overwhelm a smaller board.
Key Highlights
- 54 Digital I/O Pins — Nearly four times the GPIO count of the Uno, giving you enough pins to drive motor drivers, displays, keypads, and sensors simultaneously without resorting to expander chips.
- 15 Hardware PWM Outputs — Independently control up to 15 servos, motors, or LED channels directly from the board, freeing your sketch from software PWM overhead.
- 16 Analog Inputs — Sample up to 16 sensors with 10-bit resolution (0–1023) through the built-in ADC, ideal for environmental monitoring, PID loops, and data-acquisition rigs.
- 4 Hardware UARTs — Communicate with GPS modules, Bluetooth adapters, GSM shields, and debug terminals all at once, with no SoftwareSerial compromises on timing or reliability.
- 256KB Flash & 8KB SRAM — Store larger lookup tables, longer state machines, and bigger libraries without hitting memory ceilings mid-project.
- ATmega16U2 USB Interface — The dedicated USB-to-serial chip exposes a clean virtual COM port with no drivers needed on modern Windows, macOS, or Linux systems, and its open-source firmware can even be reflashed to emulate USB HID devices like keyboards or gamepads.
- Arduino Uno Shield Compatibility — The first set of headers matches the Uno footprint exactly, so the vast ecosystem of Uno-compatible shields — motor drivers, Ethernet, GSM, GPS — plugs in without modification.
- ICSP Header & Open Bootloader — Program the board via USB through the pre-installed STK500-compatible bootloader, or bypass it entirely with an ISP programmer through the onboard ICSP header for maximum Flash space and tighter timing control.
Technical Specifications
| Specification | Details |
| Model Number | A000067 |
| Microcontroller | ATmega2560 |
| USB-to-Serial Chip | ATmega16U2 |
| Clock Speed | 16 MHz |
| Operating Voltage | 5V |
| Recommended Input Voltage | 7–12V |
| Input Voltage Limit | 6–20V |
| Digital I/O Pins | 54 (of which 15 are PWM-capable) |
| Analog Input Pins | 16 |
| Hardware UARTs | 4 |
| DC Current per I/O Pin | 40 mA (max) |
| DC Current per 3.3V Pin | 50 mA (max) |
| Flash Memory | 256 KB (8 KB used by bootloader; 248 KB available for sketches) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| USB Connector | Type-B (for programming, serial communication & USB power) |
| Power Connector | 2.1 mm barrel jack (centre-positive) |
| ICSP Header | Yes |
| Board Dimensions | 101.52 × 53.3 mm |
| Weight | 37 g |
Common Applications & Use Cases
- 3D Printing & CNC Machining — The Mega 2560 is the board at the heart of RAMPS 1.4 and most RepRap-based 3D printers, using its four UARTs and abundant GPIO to coordinate stepper drivers, thermistors, endstops, and heated beds simultaneously.
- Robotics & Servo Control — Drive up to 15 servos or brushed motors via the hardware PWM pins without any additional PWM expander, making it the go-to platform for hexapods, robotic arms, and wheeled platforms.
- Multi-Serial Communication Hubs — Connect GPS, Bluetooth, GSM, and a debug console on separate hardware UARTs simultaneously, eliminating the timing glitches and CPU overhead associated with SoftwareSerial.
- Environmental Monitoring Arrays — Sample all 16 analog channels — temperature, humidity, soil moisture, gas sensors, light levels — and log or transmit readings without multiplexing, keeping wiring simple and latency low.
- LED Matrix & NeoPixel Installations — Control large WS2812B strips, 8×8 LED matrices, or multiplexed displays using the Mega's ample digital pins without dedicating most of your I/O to a single peripheral.
- Home Automation Controllers — Orchestrate relay banks, OLED displays, keypads, IR receivers, and RF modules from a single board, running complex rule-based automation logic that would overflow a smaller board's SRAM.
- Educational & STEM Platforms — The Mega's wealth of pins supports complex lab experiments, from PID motor control tutorials to multi-sensor data-fusion projects, without requiring hardware upgrades as curriculum complexity grows.
- Industrial Prototyping & PLCs — Validate relay control logic, solenoid sequencing, and sensor feedback loops in hardware before committing to a custom PCB, using the Mega's robust 40 mA per-pin drive capability to switch external loads directly.
- MIDI Controllers & Audio Hardware — Use the ATmega16U2's USB HID firmware capability to enumerate the board as a USB MIDI device, building custom instrument controllers, DAW control surfaces, or audio trigger pads with no additional chips.
- Data Logging Systems — Combine the 16 analog inputs with an SD card shield and a real-time clock module to build high-channel-count data loggers for weather stations, vehicle telemetry, or lab experiments.
What's in the Box

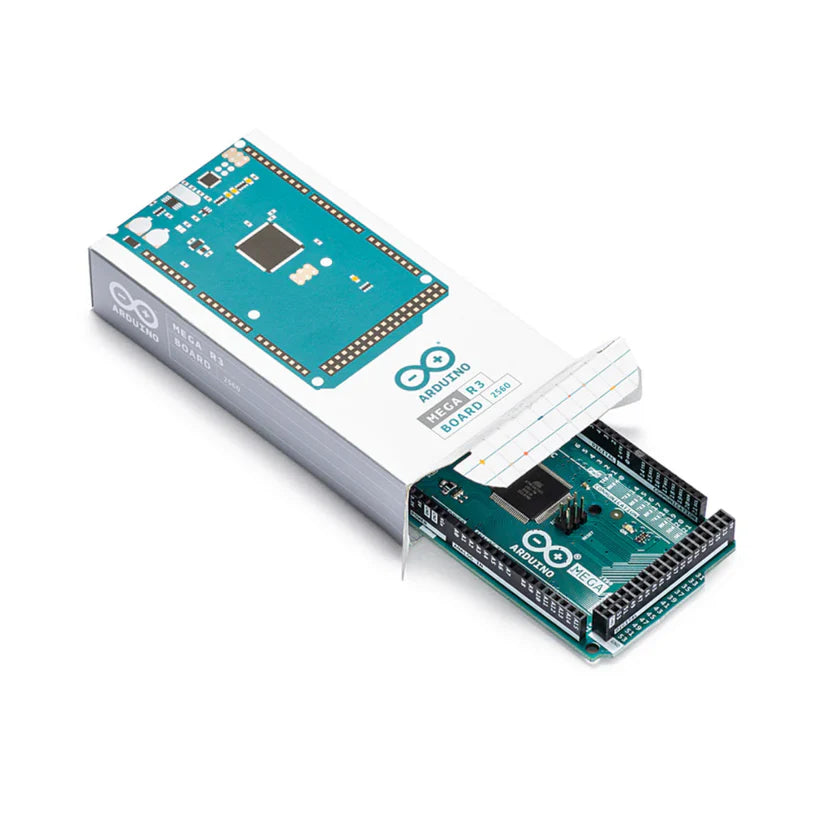

- 1× Arduino Mega 2560 Rev3 board (A000067)
- 1× USB Type-B cable
Note: accessories such as power supplies, breadboards, jumper wires, sensor modules, shields, and SD cards are sold separately and not included unless stated above.
Frequently Asked Questions
Is the Arduino Mega 2560 compatible with the Arduino IDE, and does it require special drivers?
Yes — the Mega 2560 is fully supported by the Arduino IDE (version 1.8.x and the newer IDE 2.x) on Windows, macOS, and Linux. The onboard ATmega16U2 USB-to-serial chip presents as a standard virtual COM port, so no third-party driver installation is required on any modern operating system. Simply install the Arduino IDE, plug in the board with the included USB Type-B cable, select "Arduino Mega or Mega 2560" from the board menu, and you're ready to upload your first sketch. The IDE also bundles the Mega 2560 core and all necessary toolchain components, so no additional packages need to be downloaded manually.
How do I power the Arduino Mega 2560, and what voltage should I supply?
The Mega 2560 can be powered in three ways: via the USB Type-B port (5V, up to 500 mA with polyfuse protection), through the 2.1 mm barrel jack (centre-positive), or directly on the VIN pin. The recommended external supply voltage is 7–12V DC — stay within this range to keep the onboard regulator cool under load. Technically the board accepts 6–20V at the absolute limits, but voltages above 12V cause the linear regulator to dissipate excessive heat, which degrades reliability over time. When running from USB alone, avoid drawing more than 40 mA per I/O pin to stay within the USB host's current budget.
Will my existing Arduino Uno shields work on the Mega 2560?
The vast majority of Uno-designed shields are physically and electrically compatible with the Mega 2560 because the first two pin headers (digital pins 0–13 and analog pins A0–A5) share the same footprint and voltage levels. However, shields that rely on SPI or I2C through the ICSP header should connect to the Mega's ICSP header rather than pins 10–13, as SPI is mapped differently on the Mega. Always check the shield's datasheet for Mega-specific wiring notes. Code written for the Uno compiles and runs on the Mega without modification in nearly all cases.
How much memory is actually available for my sketches and variables?
The ATmega2560 provides 256KB of Flash, but 8KB is occupied by the bootloader, leaving 248KB for your compiled sketch. At runtime, global variables, arrays, and objects live in 8KB of SRAM — this is the most constrained resource, so monitor SRAM usage using the F() macro to store string literals in Flash instead. Additionally, 4KB of EEPROM is available for persistent non-volatile storage that survives power cycles, useful for calibration data, counters, or configuration settings. Compared to the Uno's 2KB SRAM, the Mega's 8KB gives substantially more headroom for large buffers, complex state machines, and library overhead.
What accessories do I need to start building with the Arduino Mega 2560?
The bare minimum to get started is the Mega 2560 board itself plus the included USB Type-B cable to connect it to your computer for programming. From there, a breadboard and jumper wires let you prototype circuits without soldering, and a small selection of LEDs, resistors, and push buttons is enough for most beginner projects. For external-power projects, a 7–12V DC barrel-jack adapter is recommended. If your project involves data storage or media, an SD card module pairs well with the Mega's SPI bus. None of these accessories are included in the box and are available separately.
How does the Mega 2560 compare to the Arduino Uno?
Both boards run at 16 MHz and operate at 5V, so raw computation speed is identical — the Mega's advantage is breadth, not speed. The Mega has 54 digital pins vs the Uno's 14, 16 analog inputs vs 6, 4 hardware UARTs vs 1, 256KB Flash vs 32KB, and 8KB SRAM vs 2KB. The Uno is the right choice for simple, single-purpose projects where board size and cost matter; the Mega is the right choice when you've outgrown the Uno's I/O count or are running firmware (like Marlin for 3D printing) that requires more pins and memory than the Uno can offer. The physical board is also larger — 101.52 × 53.3 mm vs the Uno's 68.6 × 53.4 mm.
How many hardware serial ports does the Mega 2560 have, and how do I use them?
The Mega 2560 has four independent hardware UARTs: Serial (pins 0/1, also routed to USB via ATmega16U2), Serial1 (pins 18/19), Serial2 (pins 16/17), and Serial3 (pins 14/15). In the Arduino IDE, you access them as Serial, Serial1, Serial2, and Serial3 — all use the same API as the standard Serial object. Each port runs independently at its own baud rate, making it straightforward to simultaneously communicate with a GPS module, a Bluetooth adapter, and a GSM shield while keeping Serial free for debug output to the IDE's Serial Monitor. No SoftwareSerial workarounds are needed.
Is the Arduino Mega 2560 suitable for beginners, or is it better for advanced users?
The Mega 2560 is fully accessible to beginners — it uses the same Arduino IDE, the same C/C++ Arduino language, and the same upload workflow as the Uno, so if you've done any Arduino project before, you already know how to use it. For absolute first-timers, starting with the Uno is common because it has a smaller pin count that feels less overwhelming, but there's nothing technically harder about the Mega. Advanced users choose the Mega specifically when projects outgrow the Uno — large-scale robotics, 3D printer firmware, complex sensor networks, and MIDI controllers all benefit from the Mega's extra I/O, memory, and UARTs.
What is the most common mistake people make when first using the Mega 2560?
The most frequent gotcha is connecting 5V logic devices directly to the I/O pins of 3.3V peripherals — the Mega operates at 5V, so any sensor, display, or module that expects 3.3V logic levels can be damaged without a logic-level shifter. A second common mistake is running all I/O pins at or near their 40 mA maximum simultaneously; the ATmega2560 has a total current limit across all pins, so spreading load and using transistors or motor drivers for high-current loads is essential. Finally, users migrating SPI-based shields from the Uno sometimes connect to pins 10–13 instead of the Mega's ICSP header, where the hardware SPI bus is actually mapped on this board.
Where can I find documentation, community support, and firmware updates for the Mega 2560?
The official Arduino documentation hub at docs.arduino.cc/hardware/mega-2560 contains the full hardware reference, schematic, PCB files, and pinout diagram for the Rev3 board. The Arduino Forum (forum.arduino.cc) has an active community with thousands of solved threads specifically covering the Mega. For the ATmega16U2 USB firmware, source code and flashing instructions are available in the official Arduino GitHub repository. The Arduino IDE itself handles core and library updates through its built-in Board Manager and Library Manager, so keeping your toolchain current requires no manual file management. The full ATmega2560 datasheet is available from Microchip's website for low-level peripheral and register reference.
