Arduino Micro Rev3
The Arduino Micro, developed in collaboration with Adafruit, is a compact yet powerful development board built around the ATmega32U4 microcontroller. Perfect for shrinking down projects or integrating into breadboards, this...
Read MoreSKU:ARD-004
- Regular price
- Rs. 2,145.82
- Sale price
- Rs. 2,145.82
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!

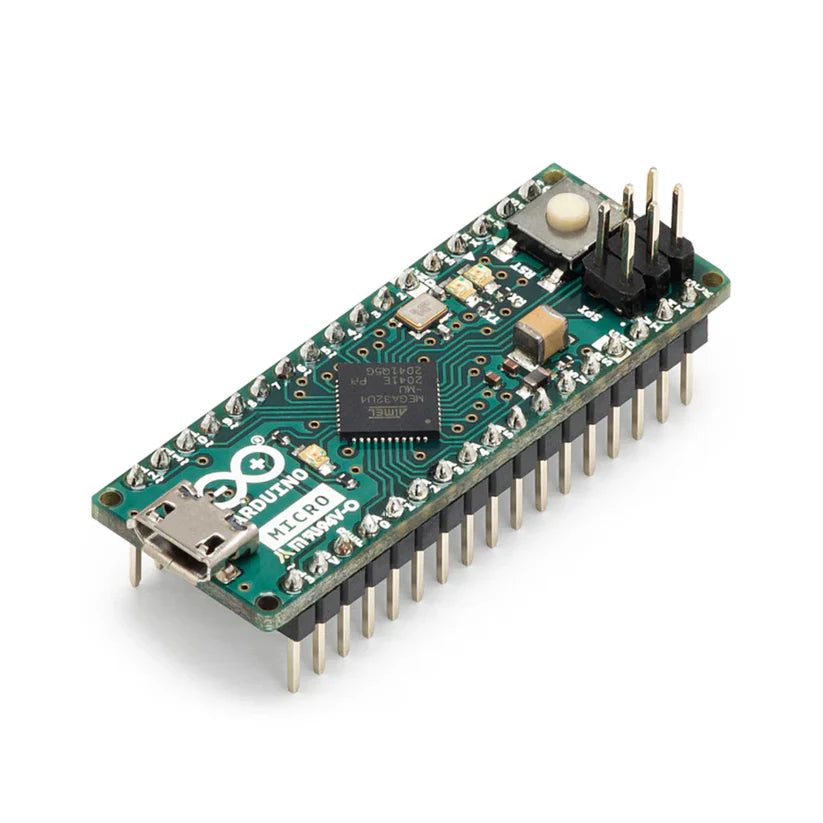

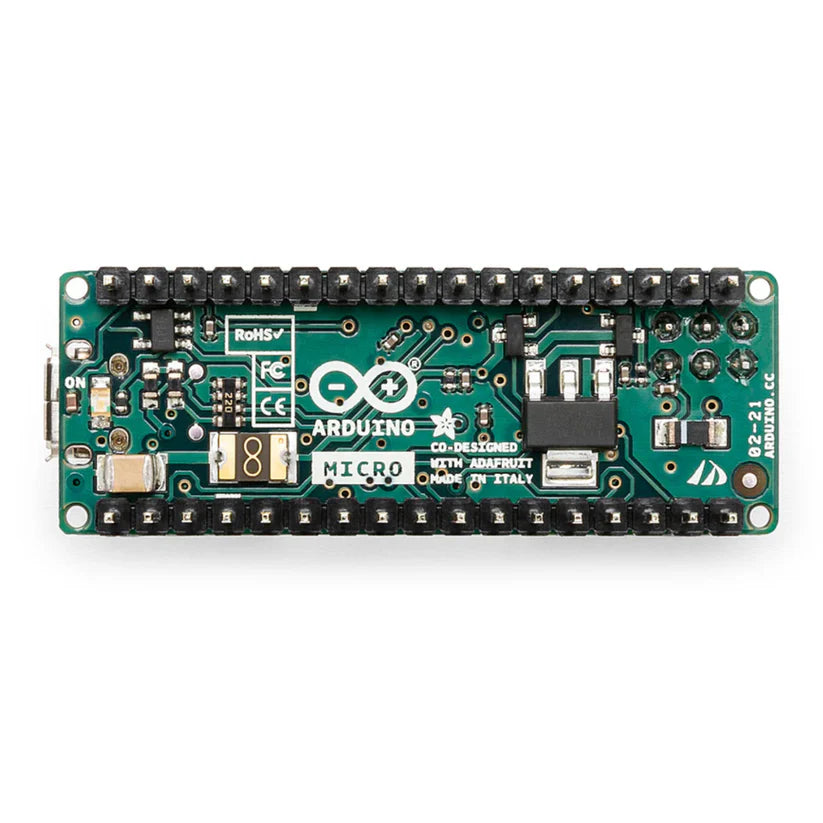

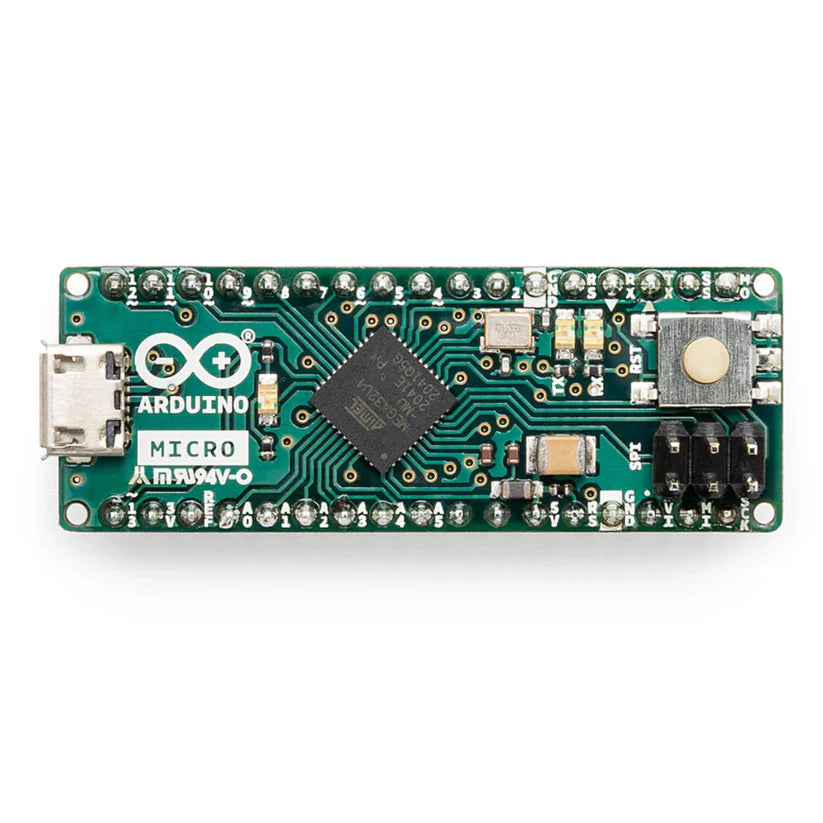

The Arduino Micro, developed in collaboration with Adafruit, is a compact yet powerful development board built around the ATmega32U4 microcontroller. Perfect for shrinking down projects or integrating into breadboards, this board offers extensive capabilities in a small footprint.
Equipped with 20 digital input/output pins (including 7 PWM outputs and 12 analog inputs), a 16 MHz crystal oscillator, a micro USB connection, and an ICSP header, the Arduino Micro provides everything you need to support the microcontroller. Simply connect it to your computer with a micro USB cable to begin your creations.
A key advantage of the Arduino Micro, similar to the Leonardo, is its built-in USB communication via the ATmega32U4. This eliminates the need for a secondary processor, allowing the Micro to function directly as a mouse, keyboard, or a virtual serial/COM port when connected to a computer. This feature unlocks exciting possibilities for human interface device (HID) projects and more.
Specifications:
- Microcontroller: ATmega32U4
- Operating Voltage: 5V
- Input Voltage: 7-12V
- Digital I/O Pins: 20
- PWM Channels: 7
- Analog Input Channels: 12
- DC Current per I/O Pin: 20 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB (ATmega32U4) of which 4 KB used by bootloader
- SRAM: 2.5 KB
- EEPROM: 1KB
- Clock Speed: 16 MHz
- LED_BUILTIN: 13
Features:
- The Arduino Micro board is built with an ATmega32U4 microcontroller.
- This Arduino Micro features 20 digital input/output pin and a 16 MHz crystal oscillator.
- Simply connect it to a computer with a micro USB cable to get started.
Pin Description:
Useful Link:

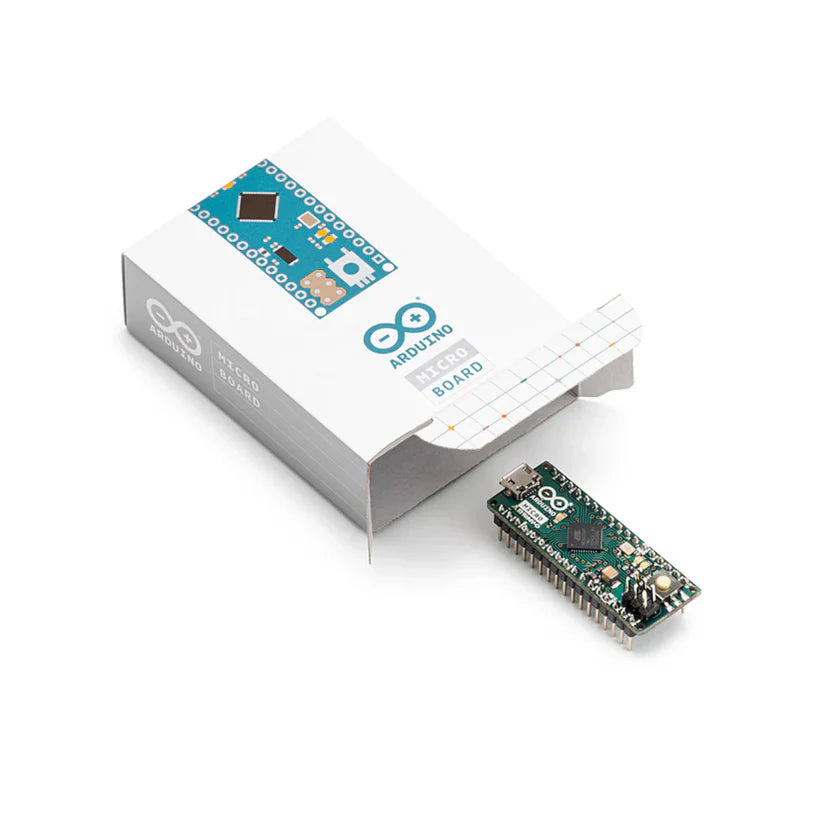

Package Included:
1 x Arduino Micro
