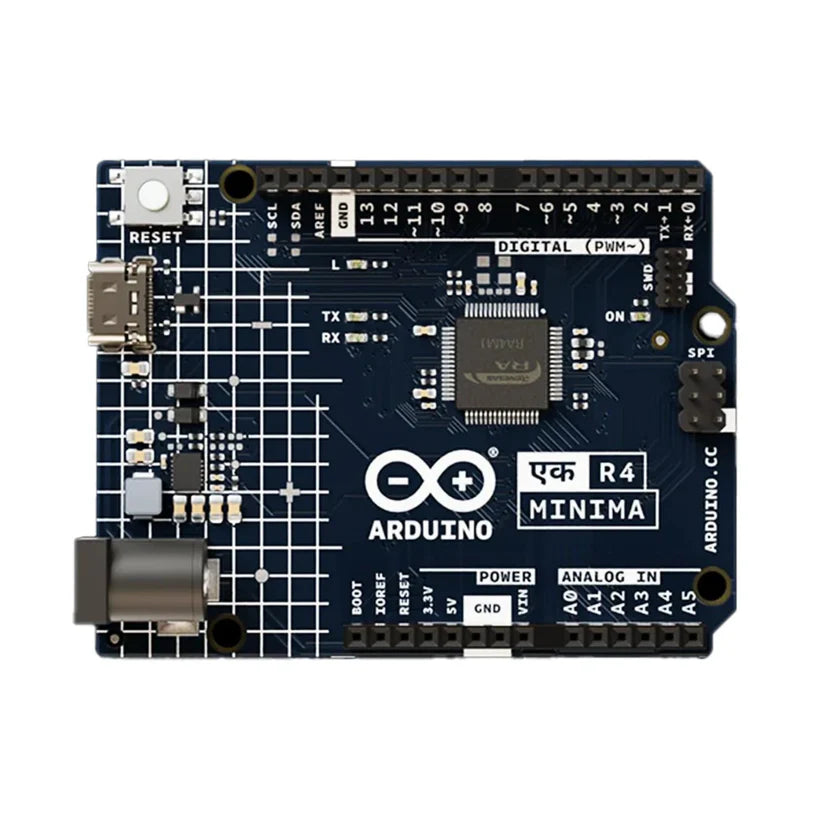

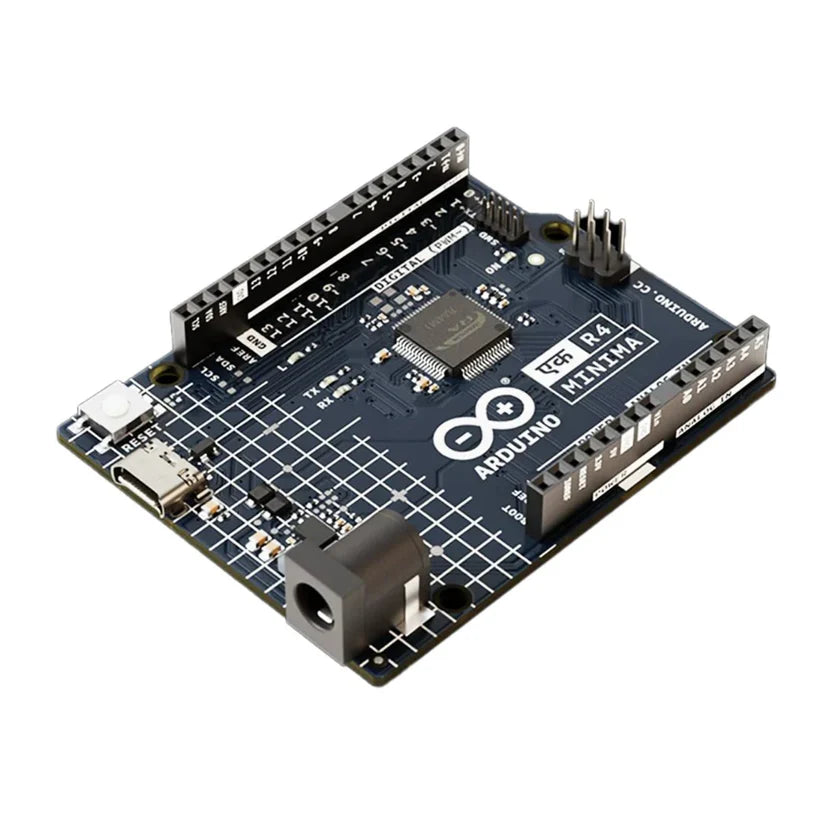

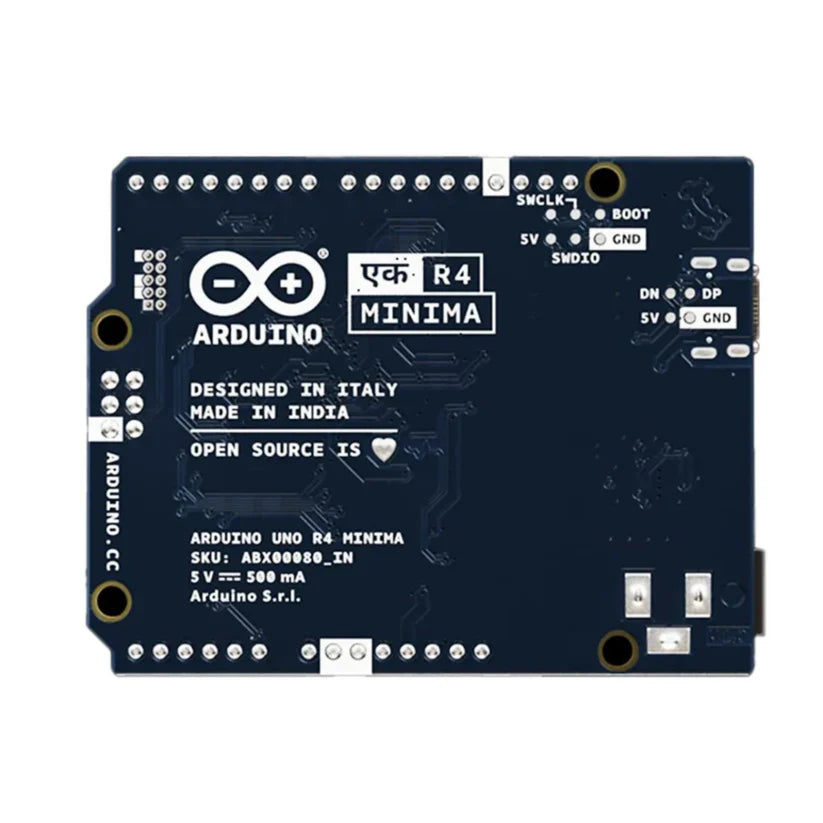

Arduino UNO EK (एक) R4 Minima — 48 MHz Arm Cortex-M4 — 256 KB Flash — Made in India
India's first official Arduino board, the UNO EK R4 Minima is powered by the Renesas RA4M1 32-bit microcontroller — delivering a massive performance upgrade over the classic UNO R3 while retaining full 5V shield compatibility. With a built-in 12-bit DAC, CAN bus, integrated OP AMP, and USB Type-C, it brings professional-grade peripherals to the familiar UNO form factor.
Key Highlights
- 48 MHz Arm Cortex-M4 Processing — A leap beyond the classic 16 MHz AVR, the RA4M1 handles floating-point arithmetic, complex control loops, and data-intensive algorithms without breaking a sweat.
- Full UNO Shield Compatibility — The same R3-footprint pin layout and 5V logic level ensure every existing shield, hat, and accessory in your collection works without modification or level-shifting.
- USB Type-C Connectivity — The modern reversible connector replaces the dated Type-B port, supporting programming, power delivery, and HID device emulation from a single cable.
- 12-Bit DAC on A0 — Generate smooth analog waveforms, audio tones, and precise reference voltages directly from the microcontroller — no external DAC chip required.
- Built-In CAN Bus Peripheral — Talk to automotive modules, industrial sensors, and multi-node embedded networks using the on-chip CAN controller; simply add an inexpensive external transceiver (e.g., SN65HVD230).
- Integrated Operational Amplifier — One OP AMP from the RA4M1's internal array is exposed for user applications, enabling analog signal conditioning, filtering, and closed-loop control without external components.
- Wide 6–24V Input Range — Power the board and high-voltage peripherals (motors, solenoids, LED strips) from a single source — the on-board regulator handles the rest.
- Real-Time Clock (RTC) — Keep accurate timestamps for data logging, scheduled tasks, and time-aware applications without an external RTC module.
- Hardware SWD Debug Port — The dedicated Serial Wire Debug connector lets you attach a J-Link or CMSIS-DAP probe for true single-step debugging, dramatically cutting troubleshooting time on complex firmware.
- HID Keyboard & Mouse Emulation — Native USB HID support means the board can act as a keyboard or mouse out-of-the-box — perfect for automation tools, accessibility devices, and USB gadget projects.
Technical Specifications
| Specification | Details |
| Microcontroller | Renesas R7FA4M1AB3CFM (RA4M1) |
| Processor Core | 48 MHz Arm® Cortex®-M4 with FPU |
| Flash Memory | 256 KB |
| SRAM | 32 KB |
| EEPROM | 8 KB |
| Digital I/O Pins | 14 (6 PWM-capable) |
| Analog Input Pins | 6 (up to 14-bit resolution) |
| DAC | 12-bit (on A0) |
| Operating Voltage | 5V |
| Input Voltage | 6–24V (barrel jack) |
| USB Connector | USB Type-C |
| Connectivity | UART, SPI, I2C, CAN |
| Debug Interface | SWD (Serial Wire Debug) |
| RTC | Built-in |
| HID Support | Keyboard & Mouse emulation |
| Form Factor | Arduino UNO R3 compatible |
| GTIN | 7630049205246 |
Common Applications & Use Cases
- IoT Edge Devices — The RA4M1's processing headroom handles MQTT parsing, JSON serialization, and sensor fusion simultaneously, making it a capable edge node without needing a companion processor.
- Motor & Actuator Control — The wide 6–24V input and 6 PWM outputs drive multiple servo or DC motor drivers from the same supply rail, eliminating the need for separate voltage regulators.
- Industrial CAN Bus Networks — Use the on-chip CAN controller with an SN65HVD230 transceiver to connect to PLCs, VFDs, automotive ECUs, and other CAN-enabled devices at up to 1 Mbps.
- Analog Signal Generation & Audio — The 12-bit DAC on A0 generates clean sine waves, DTMF tones, and audio outputs for electronic musical instruments, function generators, and signal-processing experiments.
- Home Automation Controllers — Manage lighting scenes, HVAC relays, and sensor arrays while the built-in RTC keeps schedules without an internet connection or external time module.
- Data Logging Systems — Pair the onboard RTC with an SD card shield to create timestamped sensor logs for environmental monitoring, energy metering, or predictive maintenance applications.
- Robotics & Mechatronics — Control multiple servo channels, read encoder feedback via UART or SPI, and run PID loops at 48 MHz — all on a single, shield-compatible platform.
- USB HID Gadgets — Emulate keyboards, mice, or game controllers natively over USB Type-C — ideal for macro pads, accessibility aids, test automation jigs, and custom input devices.
- Analog Signal Conditioning — Route sensor outputs through the built-in OP AMP for amplification or filtering before sampling with the 14-bit ADC, removing the need for external op-amp breakout boards.
- STEM Education & Prototyping — A direct drop-in upgrade for classroom kits and maker projects already built around the UNO R3 — same pinout, same IDE, significantly more capability.
What's in the Box

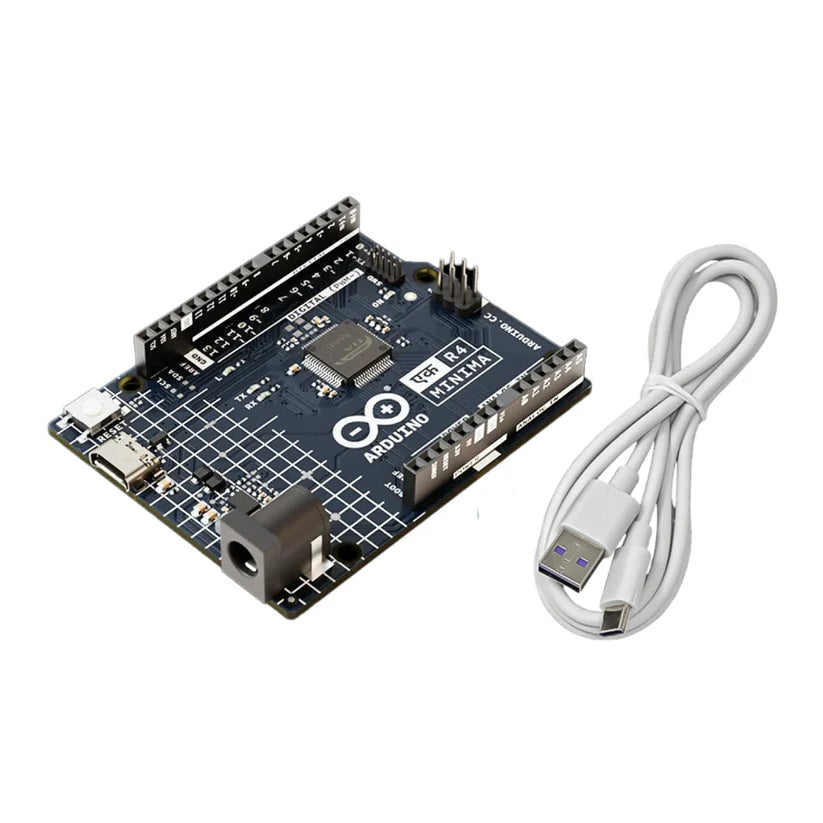

- 1 x Official Arduino UNO EK (एक) R4 Minima — Made in India
Note: accessories such as power supplies, cables, cases, and SD cards are sold separately and not included unless stated above.
Frequently Asked Questions
Is the UNO EK R4 Minima compatible with existing Arduino UNO R3 shields?
Yes — the UNO EK R4 Minima uses the identical UNO R3 form factor with the same pin positions, headers, and 5V operating voltage. Virtually every shield, module, and accessory designed for the UNO R3 will fit and function without modification. There is no need for any level-shifting or pin re-mapping when migrating an existing project from the R3 to this board.
What power supply does the UNO EK R4 Minima require?
The board accepts 6–24V DC through the barrel jack or can be powered directly via the USB Type-C connector at 5V. The wide input range makes it particularly useful in robotics and industrial settings where 12V or 24V rails are common. Each GPIO pin is rated at a maximum of 8 mA, so ensure your load calculations stay within that limit to avoid damaging the microcontroller.
Which software and operating systems are supported for programming?
The UNO EK R4 Minima is fully supported by the Arduino IDE 2.x on Windows, macOS, and Linux — simply install the Renesas UNO R4 board package from the Boards Manager. It is also compatible with PlatformIO for users who prefer a more advanced IDE workflow. The board uses standard USB drivers, so no additional driver installation is needed on most modern operating systems.
How much memory does the board have, and can it be expanded?
The RA4M1 provides 256 KB of Flash for program storage, 32 KB of SRAM for runtime data, and 8 KB of EEPROM for persistent non-volatile storage. There is no built-in SD card slot, but any standard SPI-based SD card shield can be added to expand storage significantly. The EEPROM can be written using the standard Arduino EEPROM library, making it easy to store configuration values and calibration data.
What accessories do I need to get started?
To begin programming the board, all you need is a USB Type-C cable and a computer running the Arduino IDE — the USB connection handles both power and programming simultaneously. For projects using the CAN bus feature, an external transceiver module such as the SN65HVD230 is required, as the CAN controller is on-chip but the physical layer transceiver is not. For SWD debugging, you will need a compatible probe like a J-Link EDU or a CMSIS-DAP debugger.
How does the UNO EK R4 Minima compare to the classic Arduino UNO R3?
The R4 Minima is a substantial upgrade: it replaces the 8-bit ATmega328P running at 16 MHz with a 32-bit Arm Cortex-M4 at 48 MHz, triples the Flash to 256 KB, doubles the SRAM to 32 KB, and adds peripherals the R3 never had — a 12-bit DAC, CAN bus, OP AMP, RTC, HID support, and USB Type-C. The physical footprint and 5V logic remain identical, so migration is as simple as swapping boards and recompiling.
How many GPIO and communication pins does the board expose?
The UNO EK R4 Minima provides 14 digital I/O pins (6 of which support PWM output), 6 analog input pins with up to 14-bit resolution, plus dedicated headers for UART, SPI, I2C, and CAN. The SDA/SCL pins are broken out on a separate I2C header in addition to their shared positions on A4/A5, matching the UNO R3 layout. Maximum current per GPIO pin is 8 mA.
Is this board suitable for beginners or only advanced users?
The UNO EK R4 Minima is genuinely approachable for beginners — it programs exactly like any other Arduino board using the Arduino IDE and the same familiar sketch structure, and the identical UNO form factor means all beginner starter-kit tutorials apply directly. Advanced users benefit from the Cortex-M4 performance, hardware CAN bus, DAC, OP AMP, SWD debugging, and PlatformIO support to build production-grade embedded systems. The board grows with you rather than becoming a bottleneck.
What is the most common mistake users make when setting up this board?
The most frequent gotcha is attempting to use the CAN bus without adding an external transceiver — the RA4M1 contains a CAN controller but not the physical layer driver chip, so you must connect an SN65HVD230 or similar module to the CAN TX/RX pins (D4 and D5) before any CAN communication will work. A second common error is using 3.3V-logic shields with the assumption that the R4 Minima is also 3.3V — it is a 5V board, so 3.3V-only modules require level-shifting protection to avoid damage.
Where can I find official documentation, firmware updates, and community support?
The official Arduino documentation portal at docs.arduino.cc hosts the full hardware reference, pinout diagram, cheat sheet, and peripheral tutorials (DAC, OP AMP, CAN, RTC) specific to the UNO R4 Minima. Firmware and board package updates are delivered automatically through the Arduino IDE Boards Manager. Community support is active on the Arduino Forum (forum.arduino.cc) under the UNO R4 subforum, where you will find troubleshooting guides and project examples from the global maker community.
